S8H

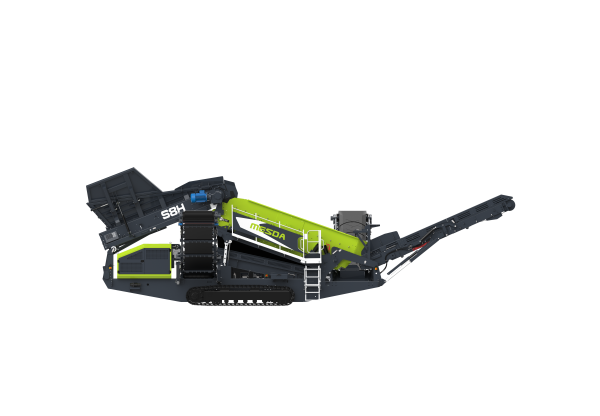

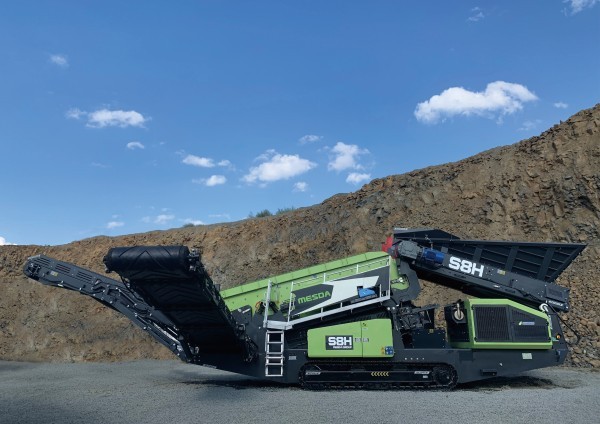

The MESDA S8H has the capacity to process at a rate of up
to 500 t/h and can be fed either by a tracked mobile crusher,
shovel or an excavator.
The hybrid technology permits the flexibility to run the plant
from an outside power supply or standard on- board engine.
PRODUCT INFORMATION
lHybrid drive
lHigh-capacity feeder, wear-resistant hopper liner
lStandard beltfeederoroptional apron feeder
lFinger grid for heavy-duty screening of complex materials
lLarge screening area, more efficient screening
lHeavy-duty design, suitable for primary screening
lAdjustable screen angle
TECHNICAL DATA
| PRODUCT MODEL | S8H |
|---|---|
| Driven mode | Hybrid |
| Engine power | 64kW |
| Capacity | up to 500t/h |
| Overall weight | 36000kg |
| Transportation dimension（L x W x H） | 15.45m x 3m x 3.45m |
| Working dimension（L x W x H） | 15.48m x 14.04m x 4.7m |
