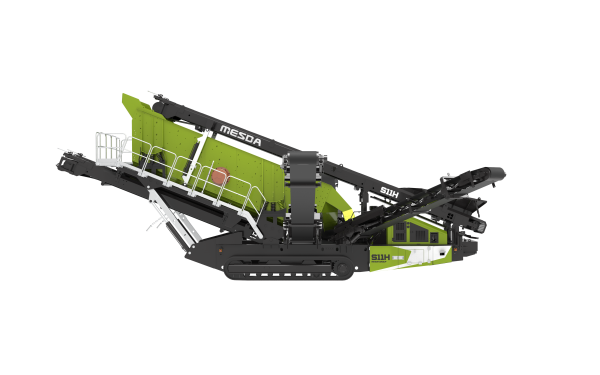

S11H
The S11H is primarily used for the screening of materials
in the later stages, utilizing different mesh specifications to
separate materials of various sizes. The materials are transported
via a conveyor belt to different locations for stacking.
PRODUCT INFORMATION
lHybrid power, allowing for seamless switching between grid power and diesel generator drive
lRemote intelligent control system for real-time monitoring of equipment status
lQuick-folding side belts for easy relocation, meeting production needs during frequent relocations
lComplies with EU Stage V emission standards, promoting energy conservation and emission reduction
lThree-deck screening to obtain various sizes of materials

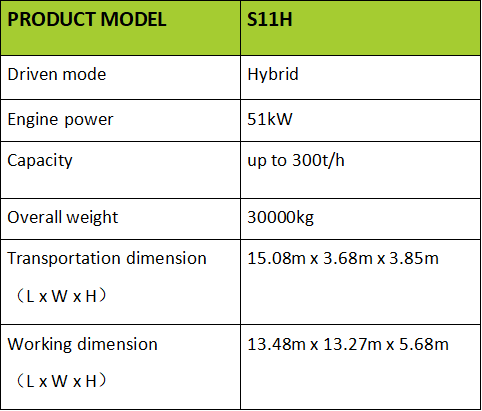

TECHNICAL DATA
| PRODUCT MODEL | S11H |
|---|---|
| Driven mode | Hybrid |
| Engine power | 51kW |
| Capacity | up to 300t/h |
| Overall weight | 30000kg |
| Transportation dimension（L x W x H） | 15.08m x 3.68m x 3.85m |
| Working dimension（L x W x H） | 13.48m x 13.27m x 5.68m |
