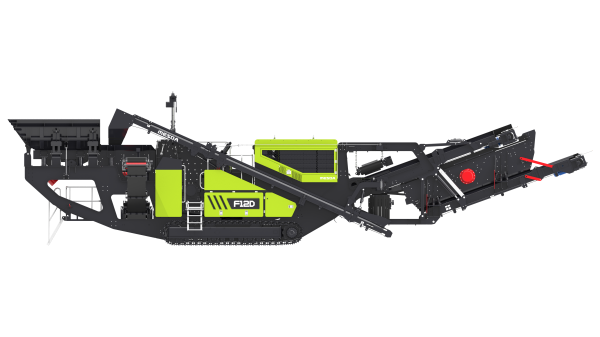

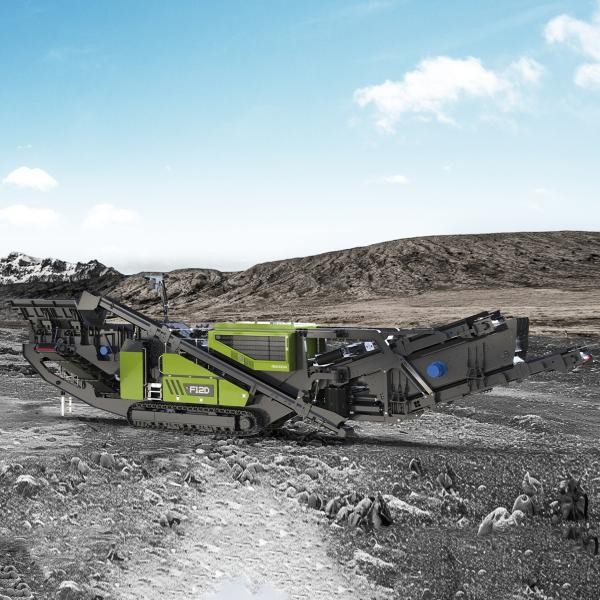

F12D
F12D is mainly used for mid-stage crushing of materials to
obtain medium-sized materials. The crushed materials can be
further screened to obtain materials of different sizes.
At the same time, F12D meets the Stage V emission require
ments, complies with the Stage V, and can meet the needs of the
global market.
PRODUCT INFORMATION
lExpandable hopper for easy storage of more materials
lDouble-layer independent pre-screening, effectively reducing material jamming
lAdjustable crusher speed, reducing energy consumption
lLarge-size impact crusher rotor, more efficient material crushing
lWidely adjustable discharge opening for high material throughput
lRemote intelligent control system, real-time monitoring of equipment status
lRecirculation conveyor rotatable as side conveyor

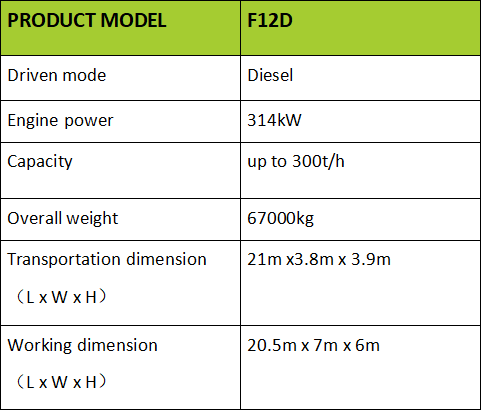

TECHNICAL DATA
| PRODUCT MODEL | F12D |
|---|---|
| Driven mode | Diesel |
| Engine power | 314kW |
| Capacity | up to 300t/h |
| Overall weight | 67000kg |
| Transportation dimension（L x W x H） | 21m x3.8m x 3.9m |
| Working dimension（L x W x H） | 20.5m x 7m x 6m |
